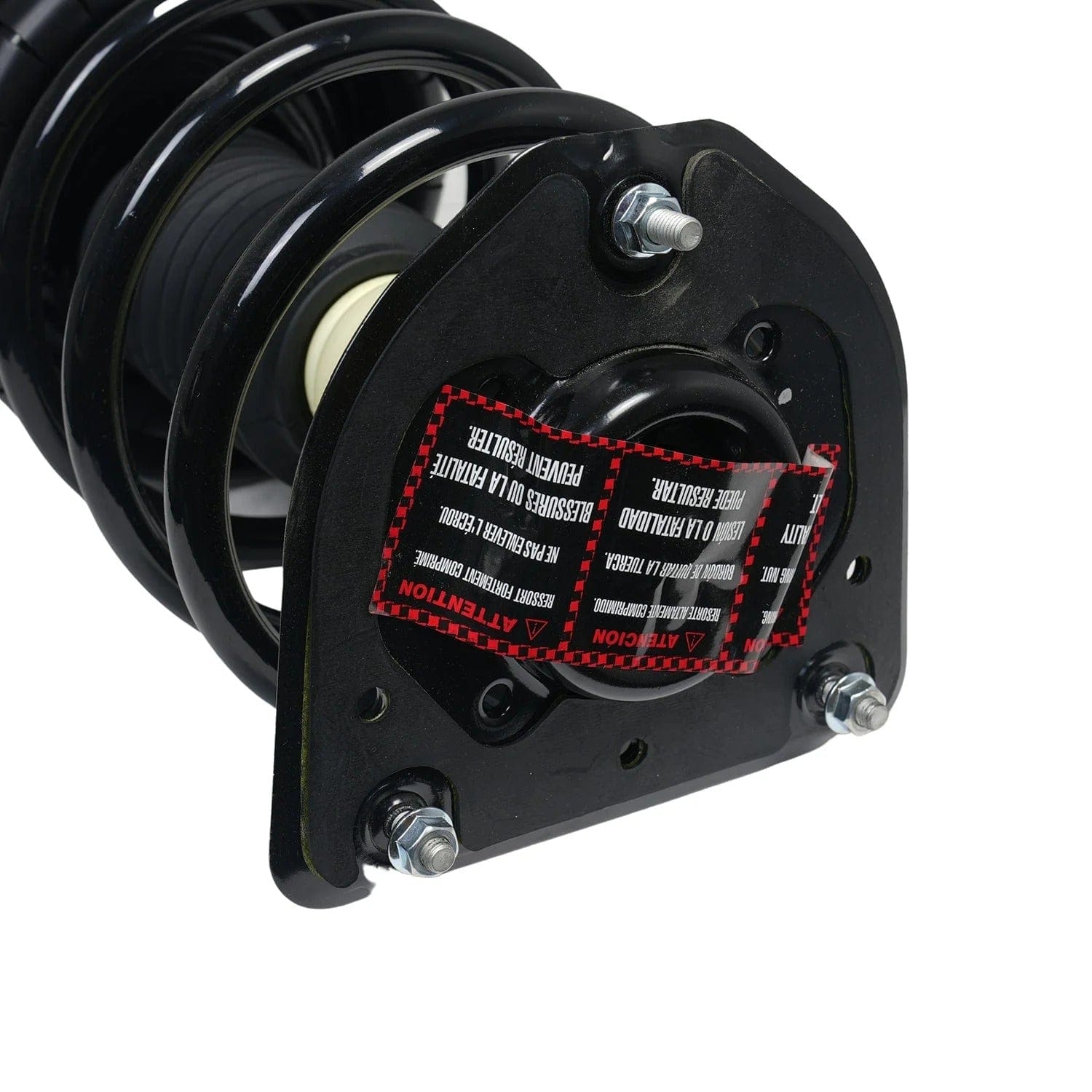

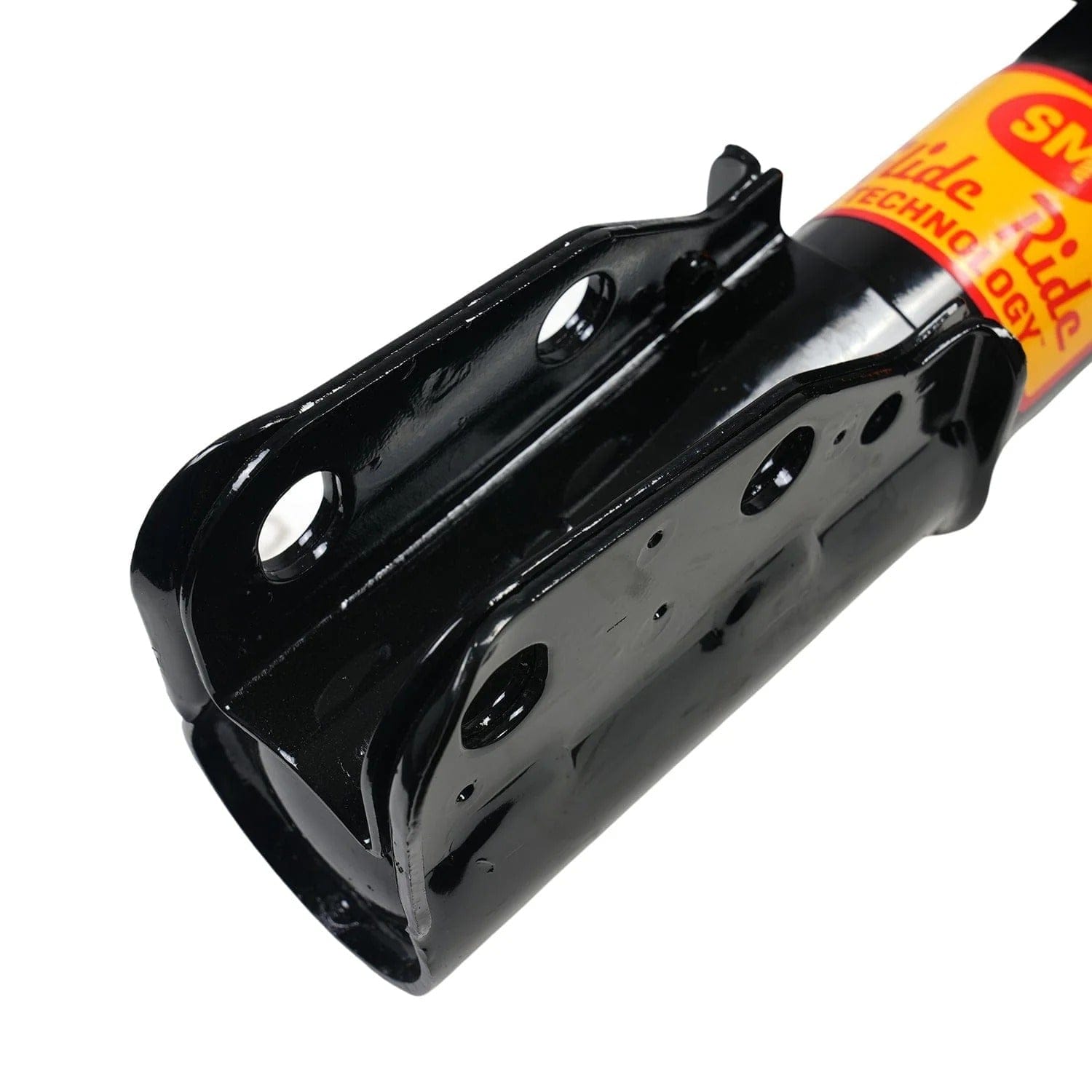

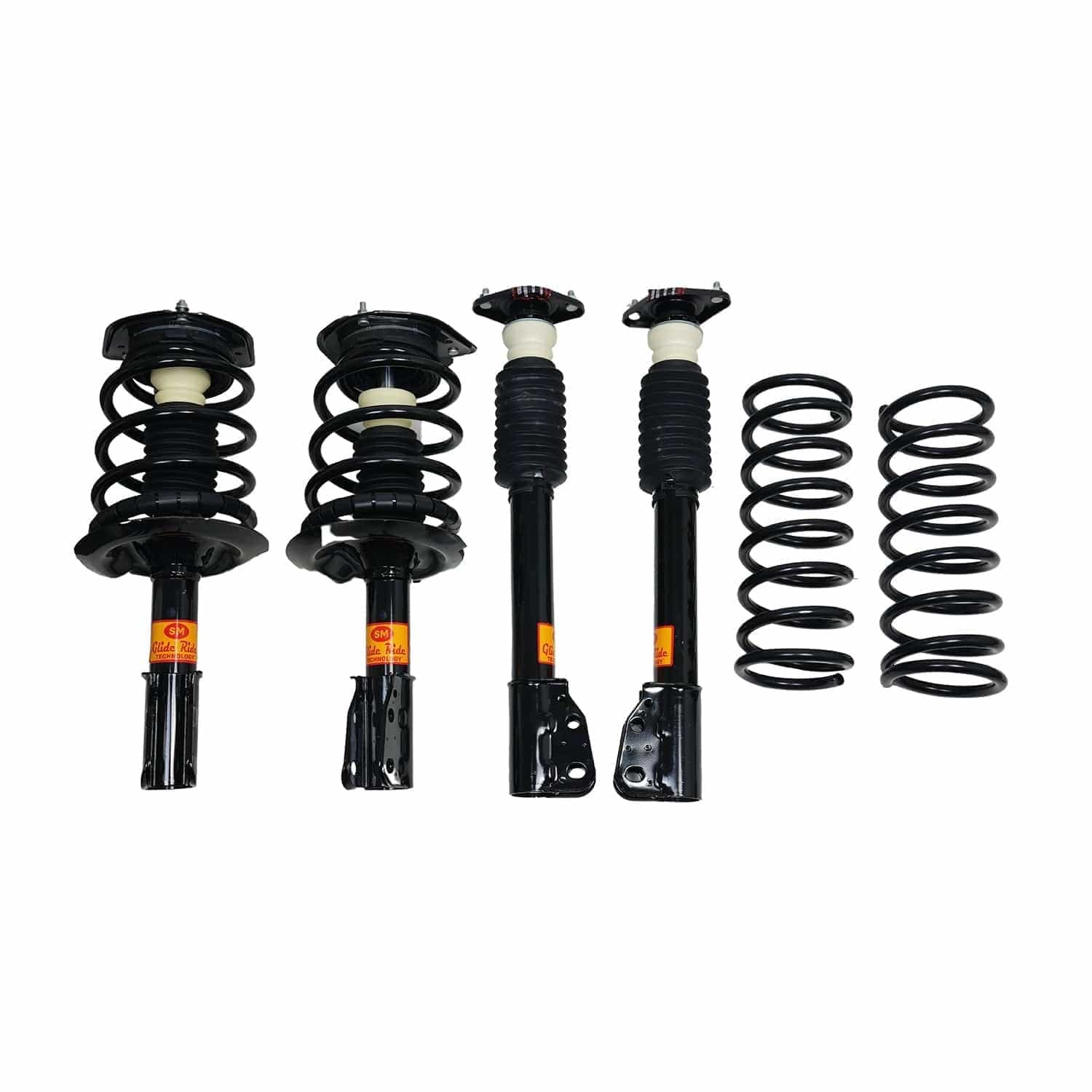

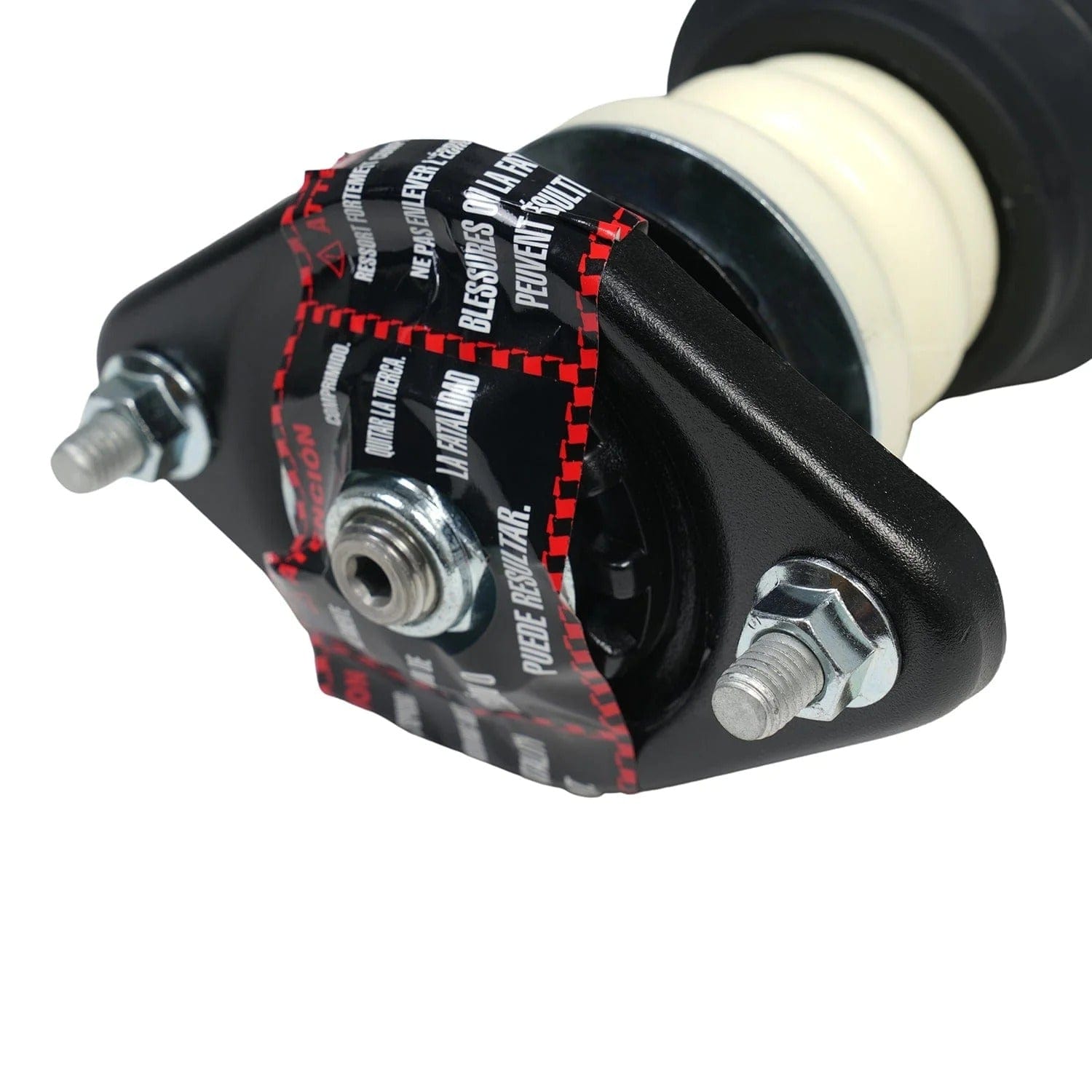

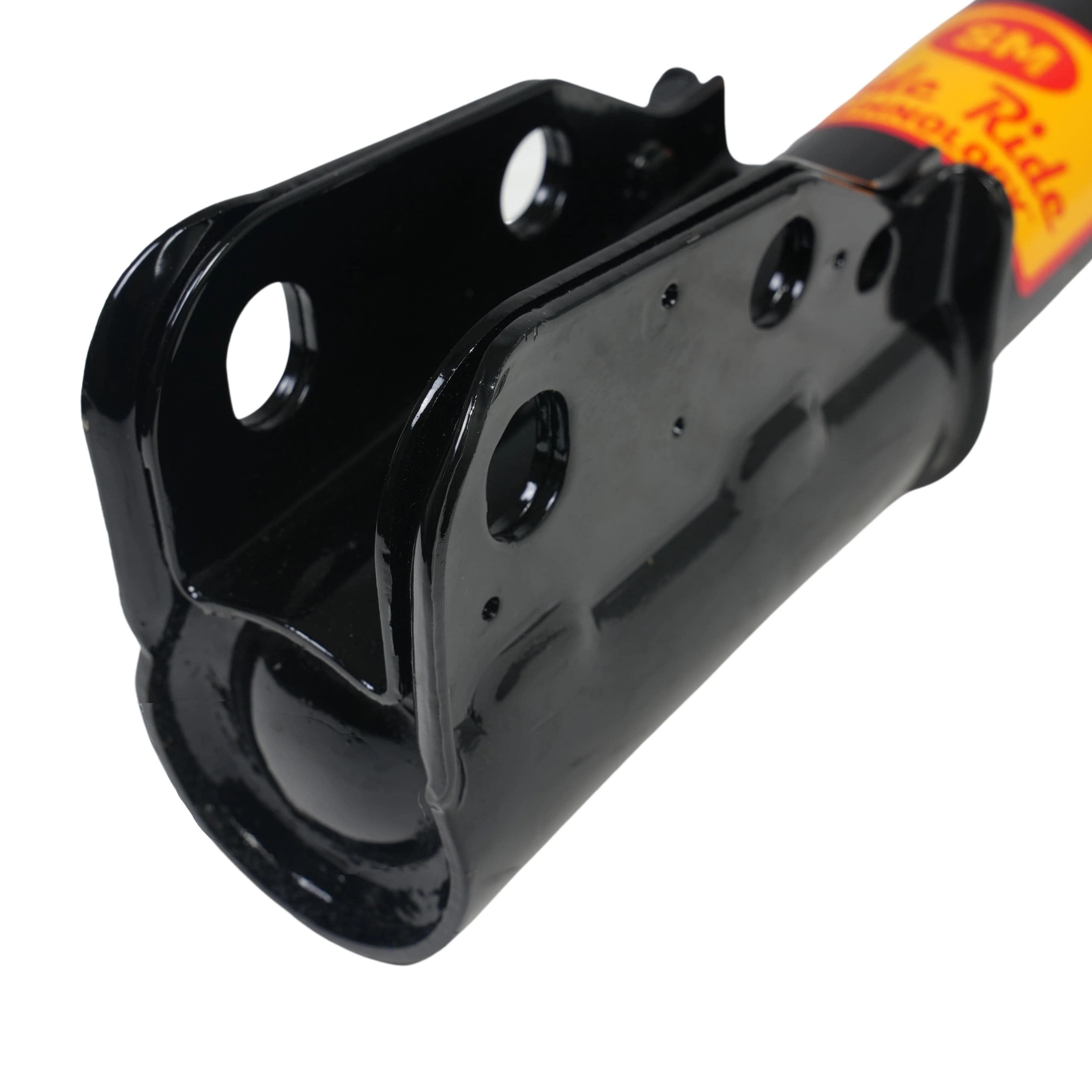

1991-1999 Pontiac Bonneville 4 Wheel Air Suspension Conversion Kit (CA24F)

The 1991-1999 Pontiac Bonneville is built with the following suspension components:

1991-1999 Pontiac Bonneville Electronic Struts (x2)- a type of shock absorber; has metal tubing filled with gas-charged hydraulic fluid that is connected to the wheel of a vehicle in order to reduce the effects of vertical travel on a rough surface which controls the bounciness, and therefore comfort, of a vehicle. The Buick LeSabres struts, while having coil-springs, use an electronic signal to stiffen or soften the dampening of the strut.

1991-1999 Pontiac Bonneville Height Sensors (x2)- a linkage located near each wheel of a vehicle with any electronic suspension that, either mechanically or electronically, constantly measures the height of the vehicle, and reports this information back to the control module so that the computer can identify if changes in height need to be adjusted accordingly. The ride height sensor is a moving part, and like all moving parts, they will eventually wear out. .

1991-1999 Pontiac Bonneville Air Lines- tubes that run from a compressor (air suspension) to the air struts which carry pressurized air to the air bags components in order to adjust the height of the vehicle, respectively.

1991-1999 Pontiac Bonneville Solenoids (x4)- usually L-shaped, these plastic components connect the electrical connection and lines of suspension components to the suspension control module on vehicles with active suspension. The solenoid regulates the air pressure for each air spring. Solenoids start to leak as they wear out causing the vehicle to sag or to lean. This will cause the ride height sensor to send a signal to activate the compressor in an attempt to inflate the air suspension and level out the vehicle. This excessive work load will eventually lead to total failure of the compressor.

1991-1999 Pontiac Bonneville Compressor- creates/sends pressurized to active suspension components. When the air suspension starts leaking, the compressor/pump starts working harder to try to keep the system inflated. By the time air suspension leaks down completely, sitting the vehicle on its tires, the compressor will either have failed or be well on its way to full failure. Buying replacement struts and taking the time to install them only to find out the compressor still needs to be replaced can be very frustrating, time-consuming, and expensive.

1991-1999 Pontiac Bonneville Dryer Assembly- used to keep moisture out of air lines and air springs in order to prevent freezing and internal cracking of these parts. Once air suspension starts leaking, moisture will build-up throughout the air system. Moisture damages the air suspension from the inside. The dryer will need to be replaced in order to eliminate the moisture and prevent any further damage.

1991-1999 Pontiac Bonneville Suspension Control Module- a computer which is responsible for the operations of the air suspension system and maintaining the vehicles correct ride height.

1991-1999 Pontiac Bonneville O-rings- Although they are the least expensive parts of the air suspension, they are responsible for maintaining the seal where all of the air lines connect. Be sure to replace the O-rings when repairing any air suspension system.

If your 91-99 Pontiac Bonneville is not reaching and maintaining its proper ride height, it may be time to look for common signs of a failed or leaking air suspension system. Left unchecked, a bad suspension can cause other components to wear out and total failure will set in. The most noticeable sign is a sudden uneven height difference between different sides of the Bonneville. Usually, the rear will sag first while the front end remains inflated. This gives the illusion the Bonneville is squatting down too low to the ground. Some drivers notice a lean from one side to the other. All of these symptoms are red flags. The air compressor may have stopped working or may run too often (will be very loud and noisy), in which case a replacement is needed. A bad suspension is confirmed if you see an illuminated suspension warning light on the instrument cluster. There are plenty of options out there for repair, replacement, or direct replacement- either at the dealership or using aftermarket parts- but you need to make sure you are choosing the best quality option at the best price available.

+Air Struts ($469/Air strut)
+ Air Shocks ($259/air shocks)
+ Compressor and Dryer Assembly ($320)
= TOTAL: Over $2,700 (and that doesnt even include replacing electronic components that are known to fail such as the height sensors).

+ Front Air Strut Assemblies ($469/pair)
+ Rear Air Strut Assemblies ($469/pair)
+ Compressor ($320)
+ Dryer Assembly ($40.00)
= TOTAL: Over $1,900 (and that still doesn't include replacing electronic components that are known to fail such as the height sensors).
