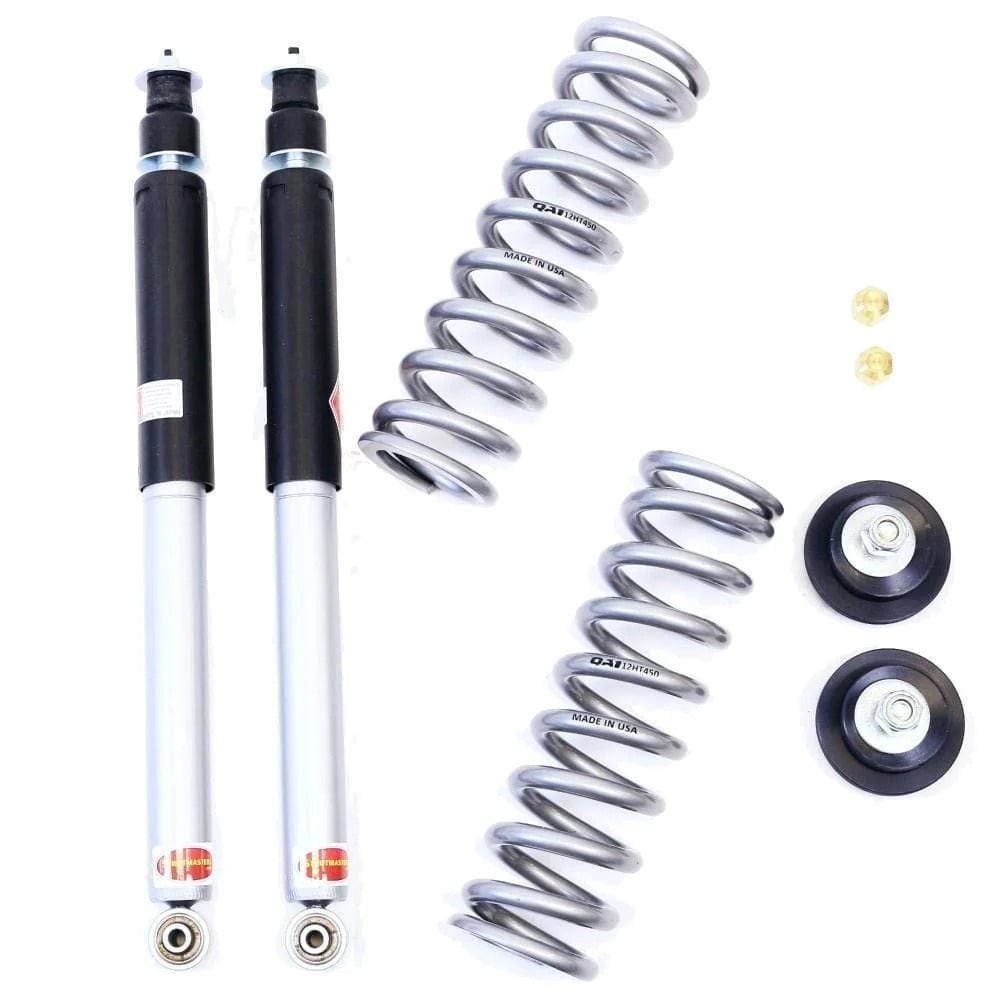

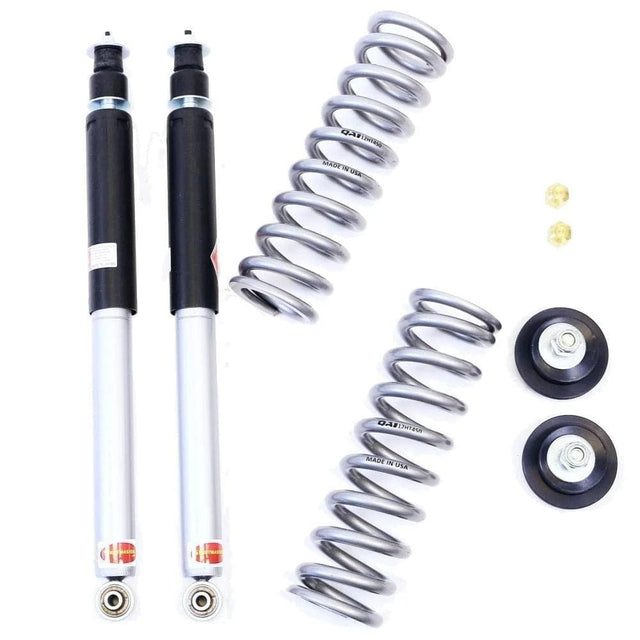

1998-2002 Mercedes-Benz E320 4MATIC Wagon Rear Hydraulic Suspension Conversion Kit (MH1RB)

Replaced Components
The 1998-2002 Mercedes-Benz E320 4MATIC Wagon is built with the following suspension components: 1998-2002 Mercedes-Benz E320 4MATIC Wagon Air/Hydrualic Springs (x2)- Commonly referred to as air bags, a plastic and rubber bag that is fitted on top of the strut that uses pressurized air as a cushion instead of a metal coil spring to hold a vehicle off of the ground and off of its wheels. These are the number one cause of all air suspension leaks. All air springs all go bad at about the same rate. If one is leaking, the others will not be far behind. For a proper repair, all of them need to be replaced at the same time. If your model has hydraulic springs/struts, then it is filled with hydraulic fluid instead of air to adjust the height and dampening of the vehicle. 1998-2002 Mercedes-Benz E320 4MATIC Wagon Electronic Shocks (x2)- shocks whose dampening capabilities are controlled by the suspension control module. 1998-2002 Mercedes-Benz E320 4MATIC Wagon Height Sensors (x4)- a linkage located near each wheel of a vehicle with any electronic suspension that, either mechanically or electronically, constantly measures the height of the vehicle, and reports this information back to the control module so that the computer can identify if changes in height need to be adjusted accordingly. The ride height sensor is a moving part, and like all moving parts, they will eventually wear out. 1998-2002 Mercedes-Benz E320 4MATIC Wagon Suspension Control Module- This vehicle is equipped with a suspension control module. This module is the brain of the suspension system and it reads all of the signals that are being sent by the height sensors and determines if the vehicle needs to be raised or lowered. 1998-2002 Mercedes-Benz E320 4MATIC Wagon O-rings- Although they are the least expensive parts of the air suspension, they are responsible for maintaining the seal where all of the air lines connect. Be sure to replace the O-rings when repairing any air suspension system.

Suspension Failure Signs
Early detection of a failed or leaking air suspension system is the key to avoiding suspension total failure. Look for these common signs that the suspension in the 98-02 Mercedes E320 4MATIC Wagon is going bad, before it's too late. The most noticeable sign is a sudden uneven height difference between different sides of the Wagon. Generally, either the front or rear end of the Wagon is sagging while the opposite end is inflated. Any imbalance in ride height can wear out the air compressor. If the air compressor has already stopped working, there may be an illuminated suspension warning light on the instrument cluster. At this stage, suspension failure is advanced. The Wagon owner must get the suspension fixed, immediately, with an expensive repair or direct replacement.

OEM Replacement Cost

+ Rear Electronic Shocks ($180/shock)
+ Rear Hydro-Pnuematic Spring ($970)
+ Hydraulic Pump ($670)
= TOTAL: Over $2,970 (and that doesn't even include replacing electronic components that are known to fail such as the height sensors).
