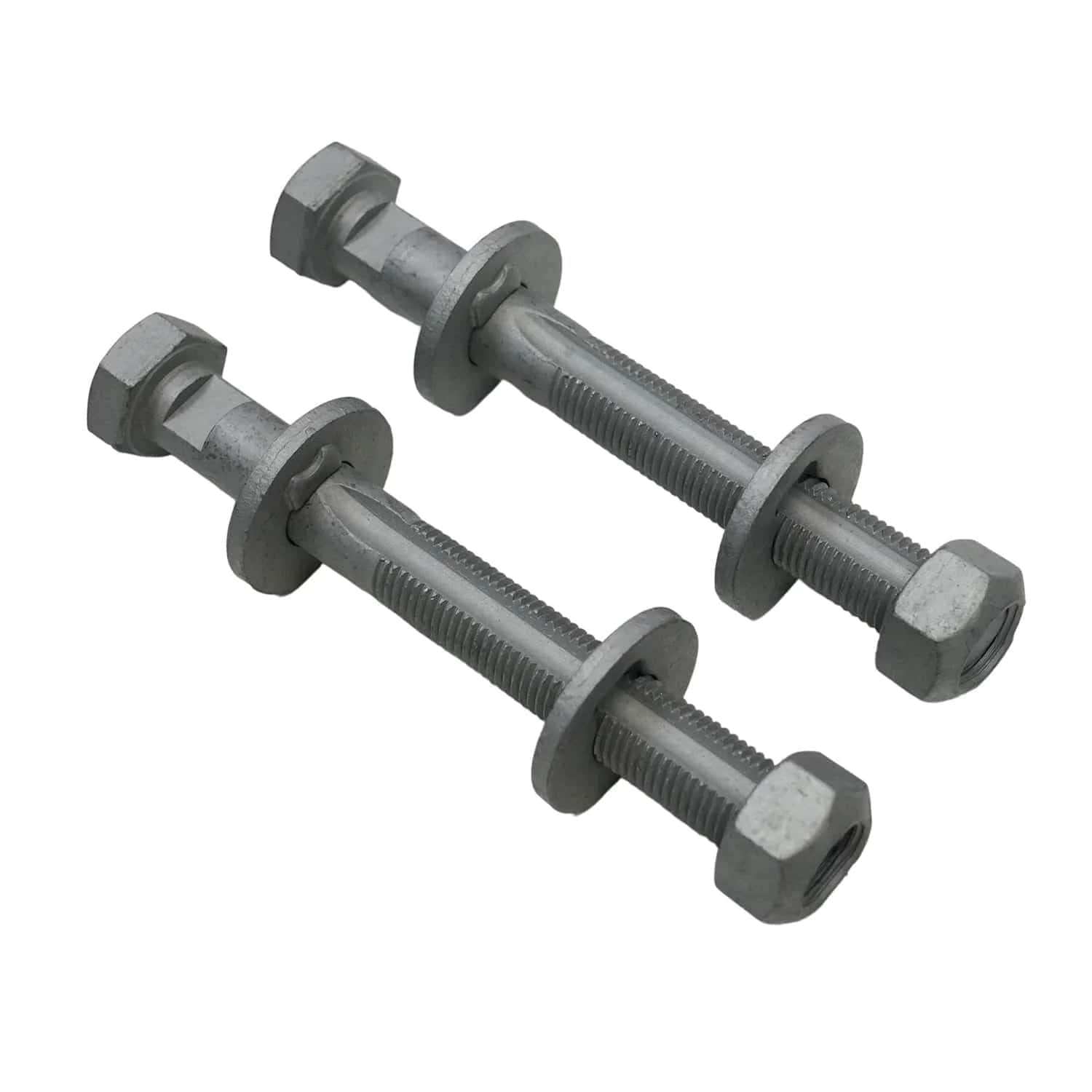

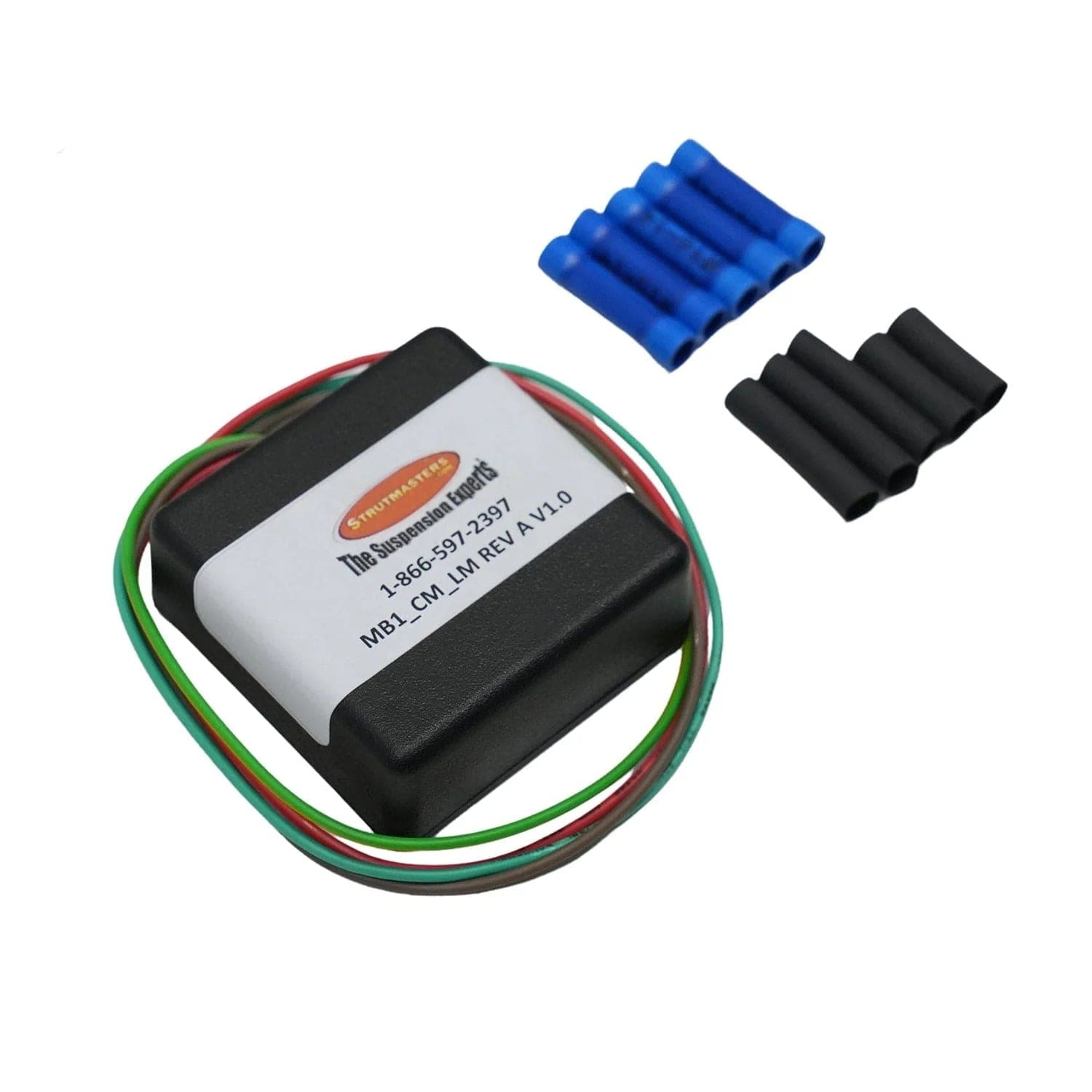

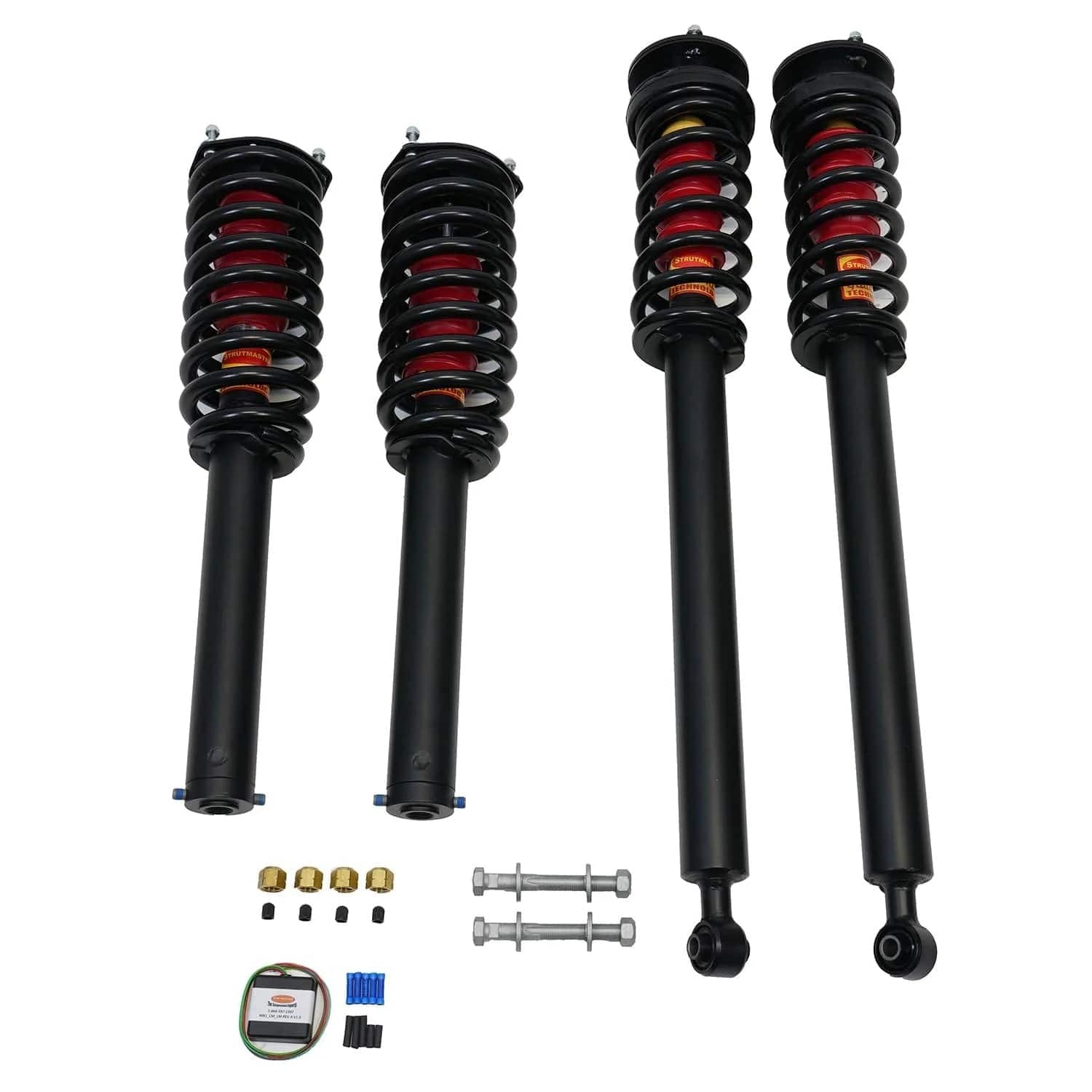

2000-2006 Mercedes-Benz S55 4-Wheel Air Or Hydraulic Suspension Conversion Kit With Light Fix and Camber Bolts (MS14FMCK)

Replaced Components
The 2000-2006 Mercedes-Benz S430 RWD is built with the following suspension components: 2000-2006 Mercedes-Benz S430 RWD Air Struts (x4)- (models with air suspension only). Commonly referred to as air bags, a plastic and rubber spring uses pressurized air as a cushion (in place of a metal coil spring) to support the weight of the vehicle. On vehicles with the air suspension systems, an air spring is mounting atop a traditional passive strut filled with a gas-charged hydraulic fluid at each corner of the vehicle. The entire unit is commonly known as an air strut. The rubber portion of the air springs are the number one cause of all air suspension leaks. Since all air springs go bad at about the same rate, if one is leaking, the others will not be far behind. For a proper repair, all of them need to be replaced at the same time. 2000-2006 Mercedes-Benz S430 RWD Active Hydraulic Strut (x4)- (models with hydraulic active suspension). Vehicles with the Active Body Control (ABC) active hydraulic suspension will have one of these on each wheel. These struts are more expensive and more complicated than a traditional passive strut because they have mechanisms which change the dampening rate (valving) inside of the strut hundreds of a times a minute. Hydraulic fluid is delivered to each strut at a much higher rate of pressure than a traditional strut. The dampening rates are controlled by a suspension control module. 2000-2006 Mercedes-Benz S430 RWD Height Sensors (x4)- a linkage located near each wheel of the vehicle that constantly measures the height of the vehicle and reports this information back to the control module so that the computer can identify if changes in height need to be adjusted accordingly. The ride height sensor is a moving part, and like all moving parts, they will eventually wear out. 2000-2006 Mercedes-Benz S430 RWD Air/Hydraulic Lines- tubes that run from a compressor to the air struts (or a hydraulic pump to the hydraulic struts for models with hydraulic active suspension), which deliver air to the air springs or hydraulic fluid to the active struts in order to adjust the height of the vehicle. 2000-2006 Mercedes-Benz S430 RWD Solenoids (x4)- These plastic and metal components regulate the air pressure for each air spring. Solenoids start to leak as they wear out and may cause the vehicle to sag or to lean. This will cause the ride height sensor to send a signal to activate the compressor in an attempt to inflate the air suspension and level out the vehicle. This excessive work load will eventually lead to total failure of the compressor. 2000-2006 Mercedes-Benz S430 RWD Compressor Assembly- (models with air suspension only). Creates and sends pressurized air to the air springs. When the air suspension starts leaking, the compressor (also known as an air pump) starts working harder to try to keep the system inflated. By the time air suspension leaks down completely, the compressor will either have failed or be well on its way to full failure. 2000-2006 Mercedes-Benz S430 RWD Hydraulic Pump- if your Mercedes has hydraulic suspension instead of air suspension, then the hydraulic steering pump will also serve as the reservoir for the hydraulic fluid going into the struts. 2000-2006 Mercedes-Benz S430 RWD Suspension Control Module- a computer which is responsible for the operations of the air suspension system (or ABC active hydraulic system) and maintaining the vehicle's correct ride height. 2000-2006 Mercedes-Benz S430 RWD Rubber O-rings- Although they are the least expensive parts of the active suspension systems, they are responsible for maintaining the seal where all of the air lines or hydraulic lines connect. Be sure to replace the rubber O-rings when repairing any active suspension system.

Suspension Failure Signs
These vehicles were sold with EITHER the factory Air Suspension OR the Active Body Control (known as ABC system) Hydraulic Suspension system. The most noticeable sign of failure for either system would be a sudden loss of three to five inches of vehicle ride height. This could occur in the front, rear or either side of your 2000-2006 Mercedes-Benz S430 RWD. An illuminated suspension warning light in the instrument cluster is another indicator of trouble for either factory suspension system. An excessively loud onboard air compressor or hydraulic fluid pump may be present. You can do a visual inspection for fluid leaks in the struts, lines and connection points of the active hydraulic system. Although cracks in the rubber air springs are the most common cause of leaks in the air suspension models, they may not be noticeable until the air springs are actually removed from the vehicle.

OEM Replacement Cost
'+ Air/Hydraulic Strut Assemblies ($1,070/strut) ) + Air Compressor Assembly ($450) Or + Hydraulic Pump ($1,510) = Over $5,700 (and that doesn't even include replacing electronic components that are known to fail such as the height sensors).

Aftermarket Replacement Cost
'+ Strut Assemblies ($590/strut) + Air Compressor Assembly ($400) Or + Hydraulic Pump ($1,080) = Over $3,500 (and that still doesn't include replacing electronic components that are known to fail such as the height sensors).
