2007-2012 Mercedes-Benz GL450 4MATIC 4-Wheel Air Suspension Conversion/Delete Kit with Shocks and Suspension Warning Light Module (MK14FM)

Convert Your AIR Suspension To Our Exclusive Passive Coil Spring System End Your Expensive Suspension Problems Forever...

CONVERSION KIT FEATURES:

• Saves Money
• Replaces Your Factory Air System
• All New Components
• Rides Great
• No Modifications, Easy To Install

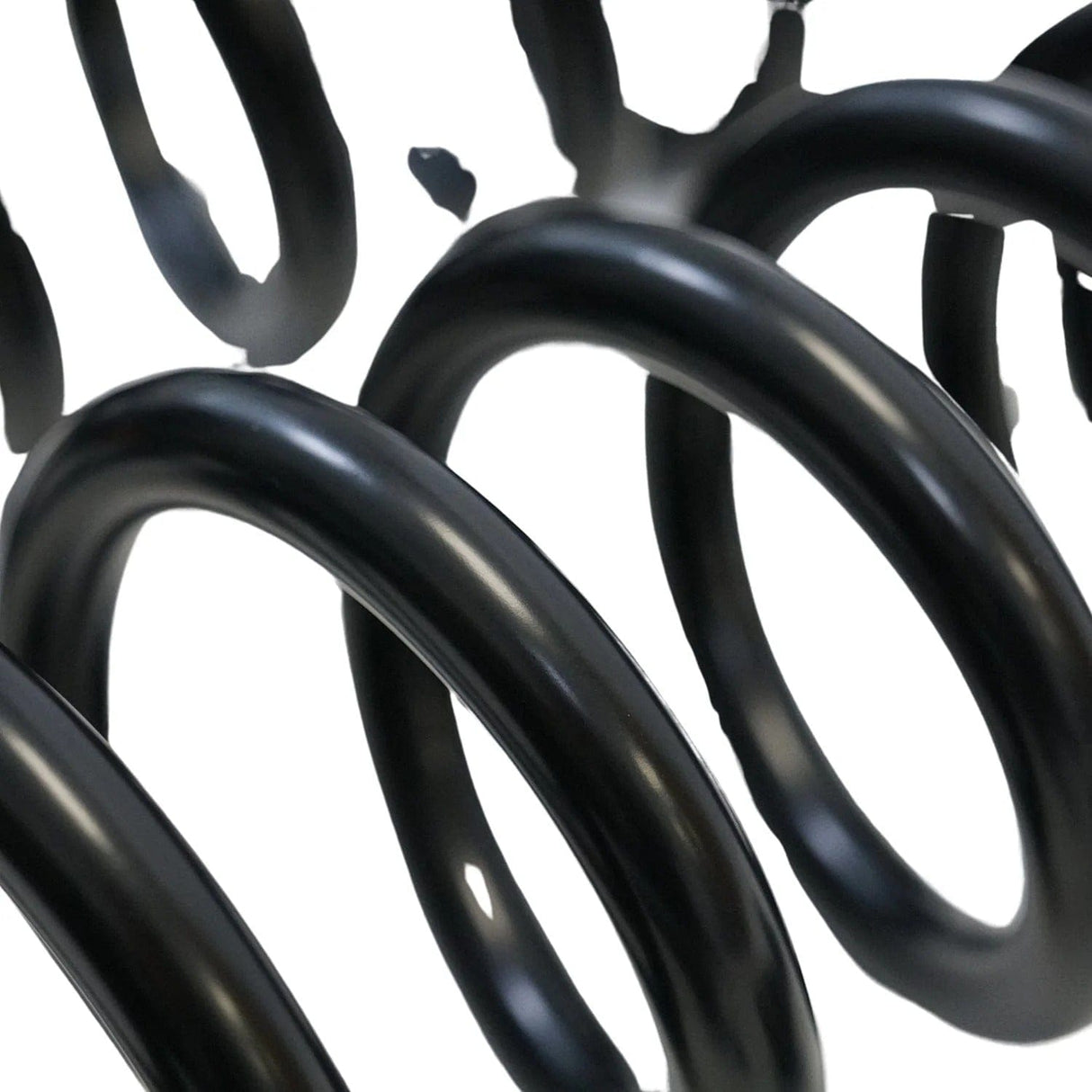

• Premium Steel Coil Springs

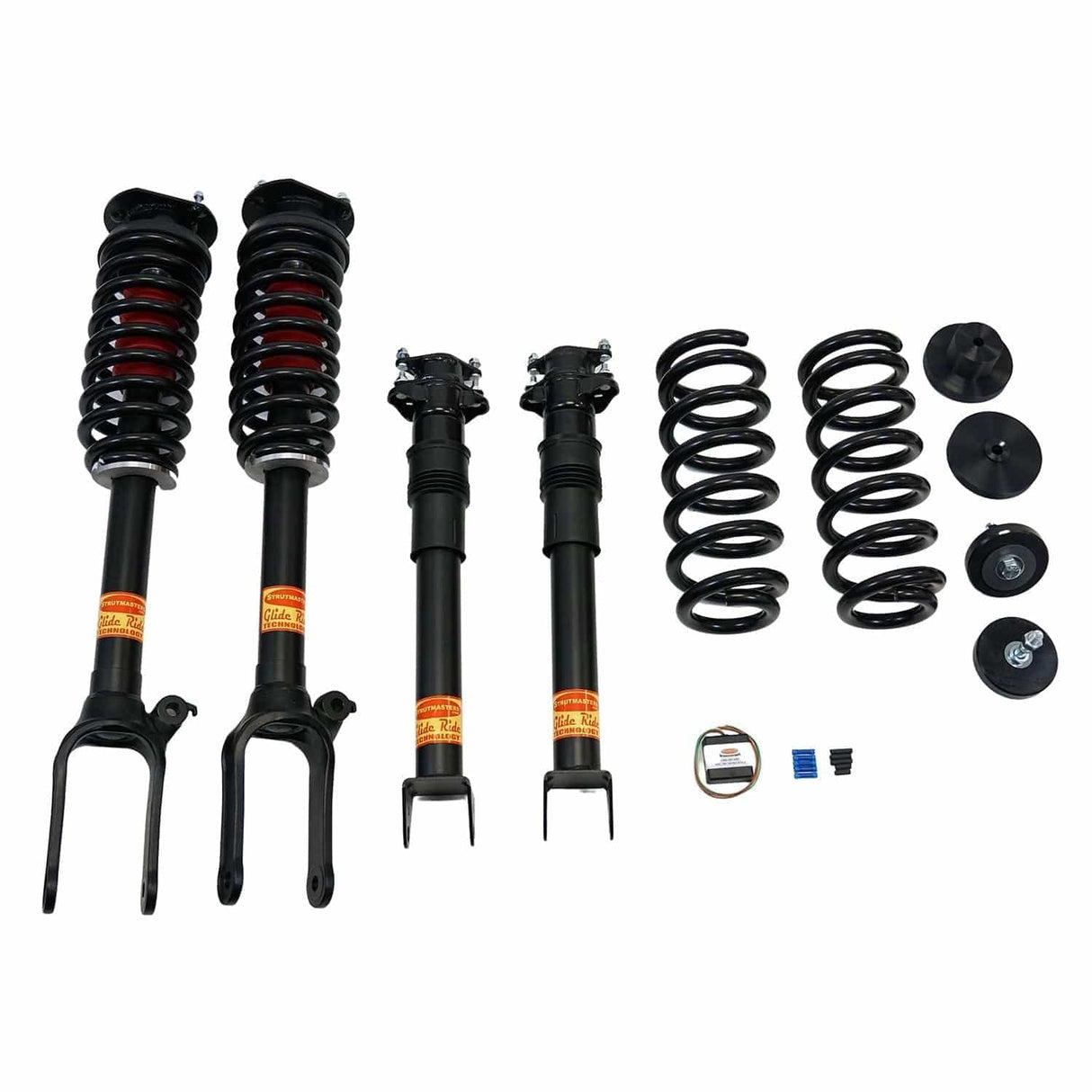

CONVERSION KIT INCLUDES:

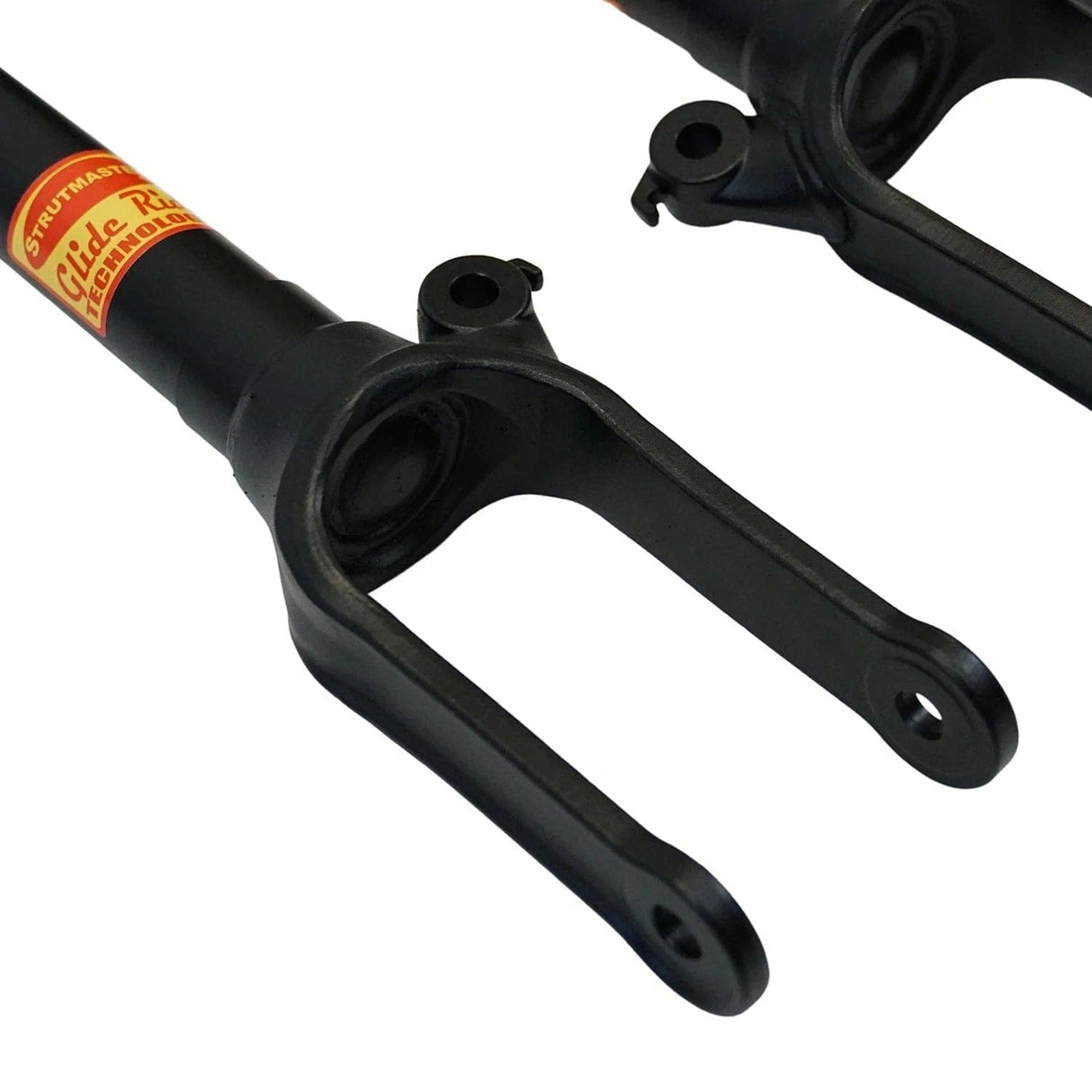

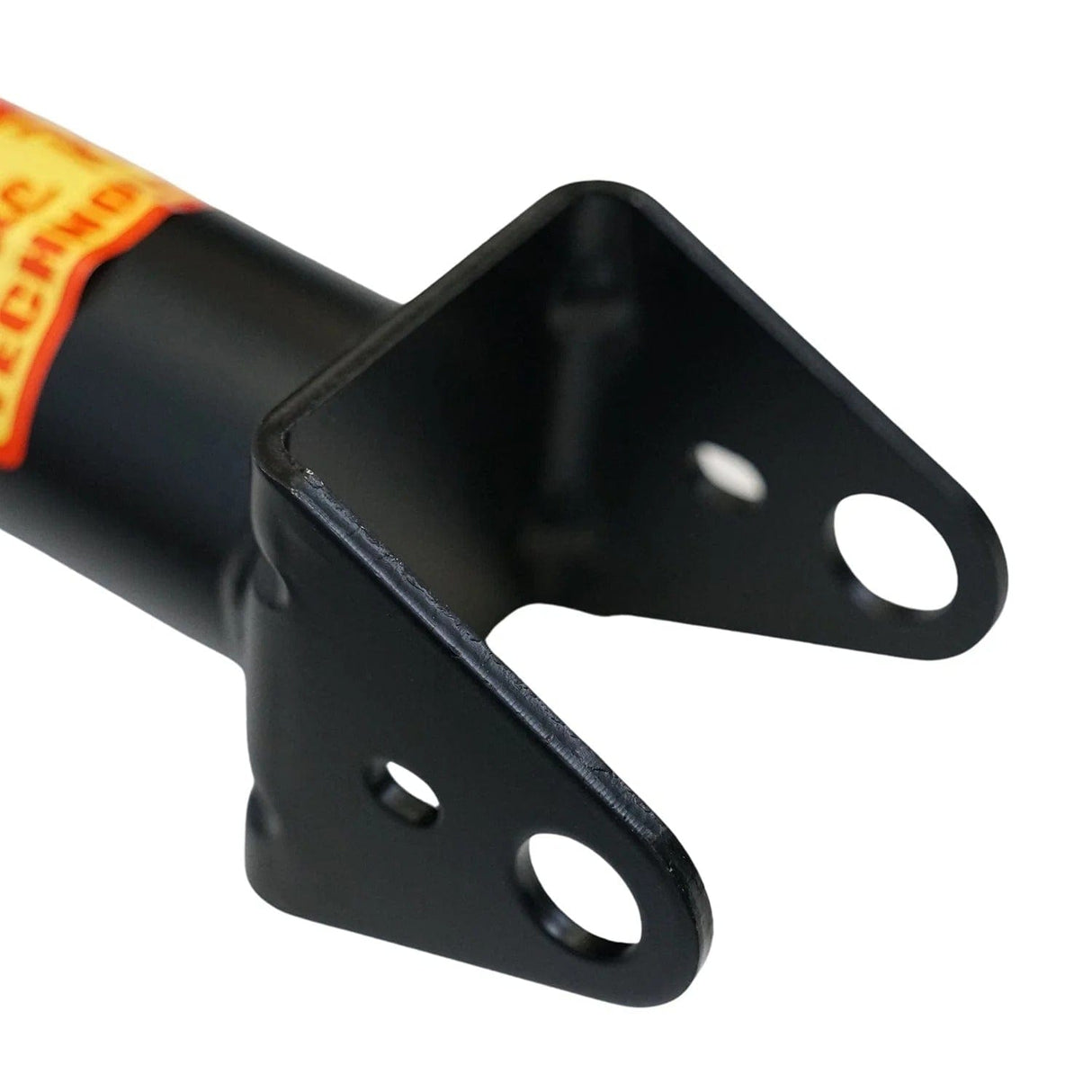

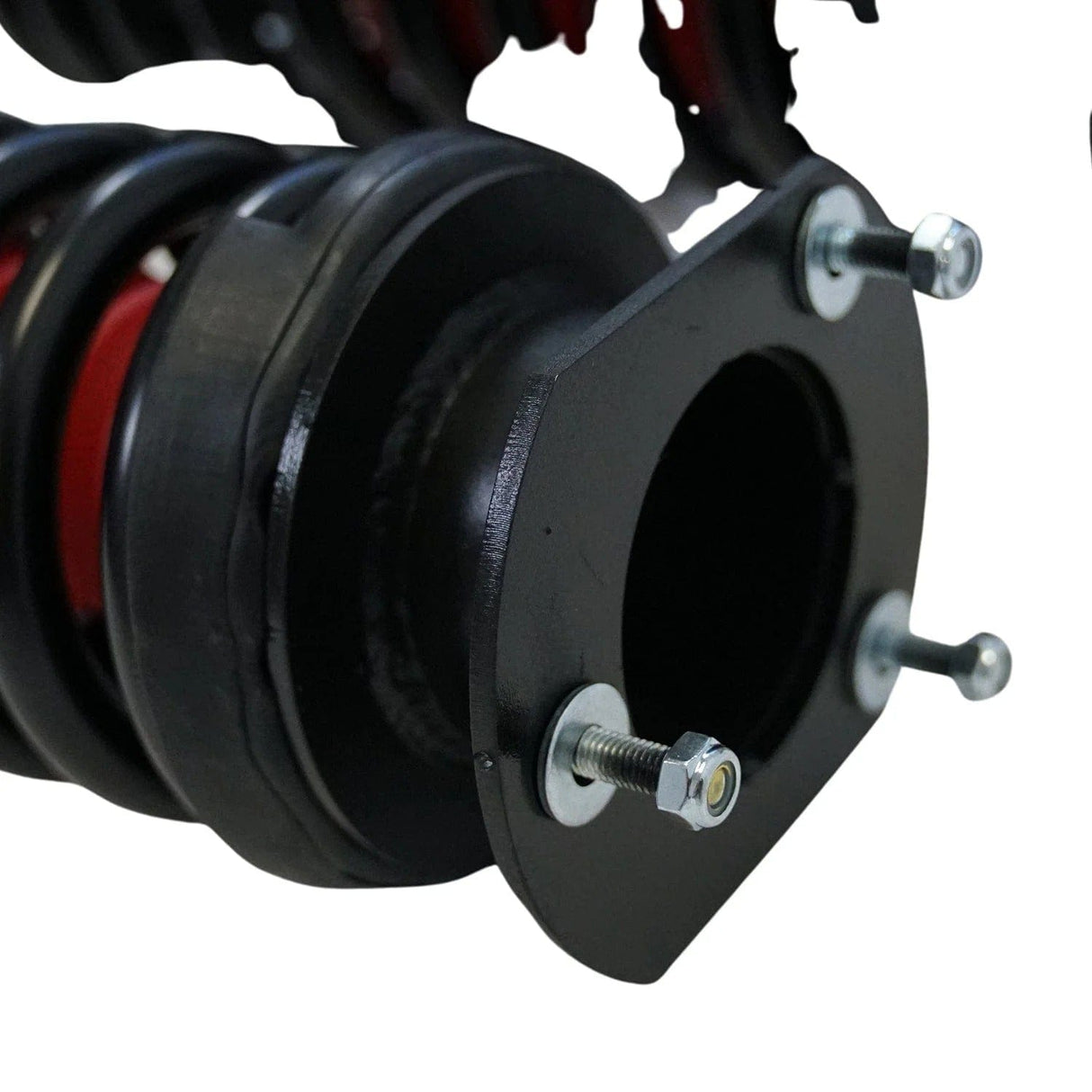

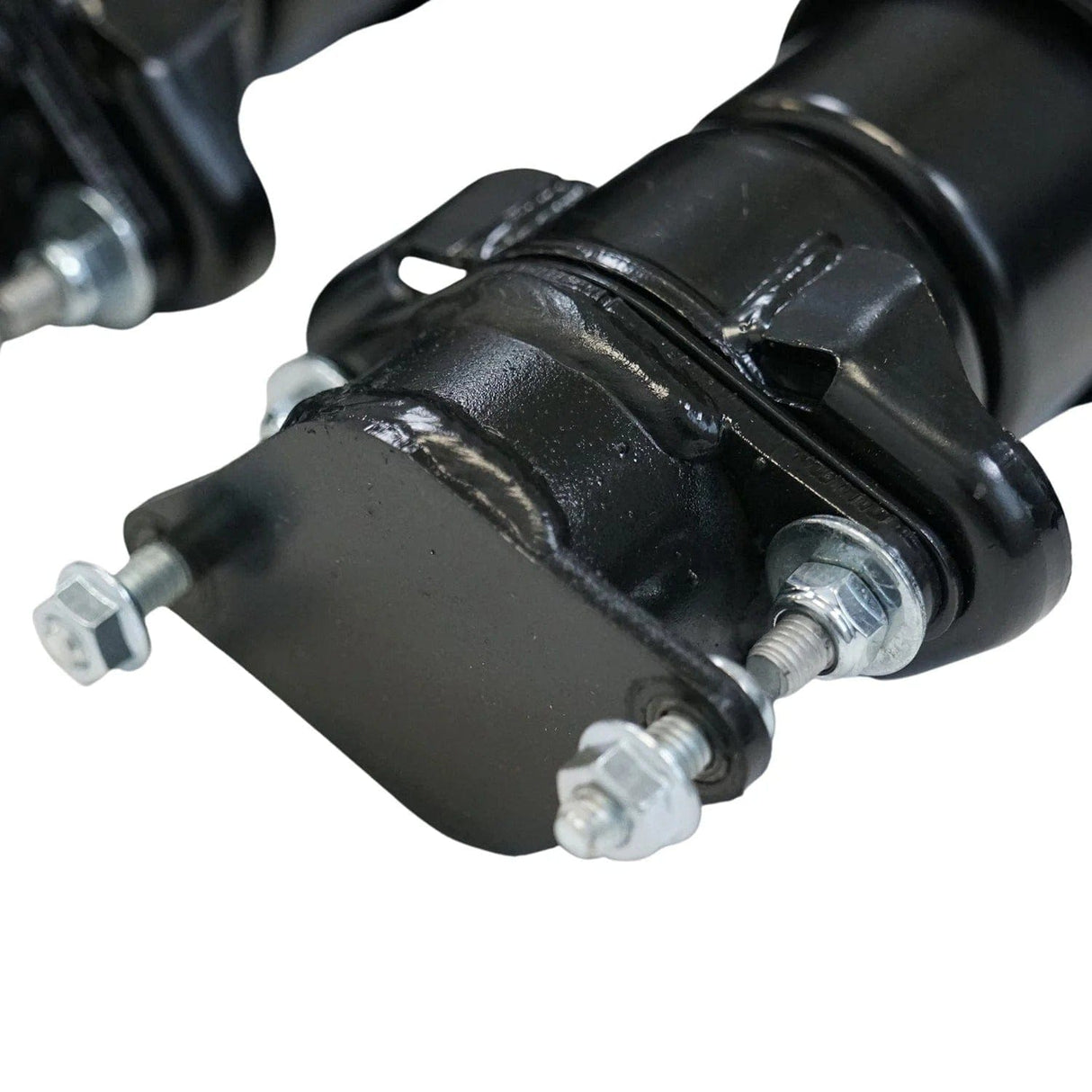

• 2 Fully Assembled Front Struts

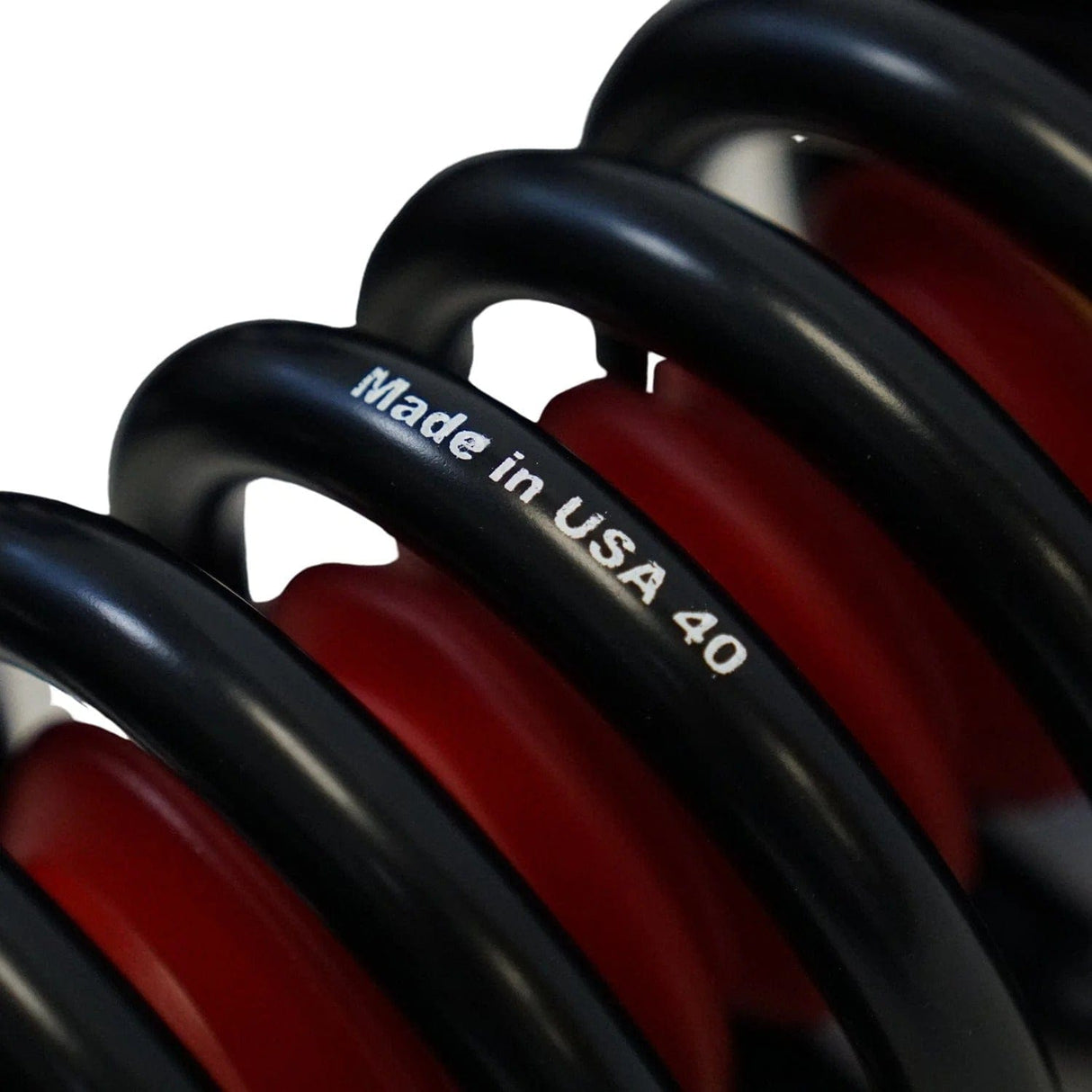

• Premium Steel Coil Springs, Front And Rear

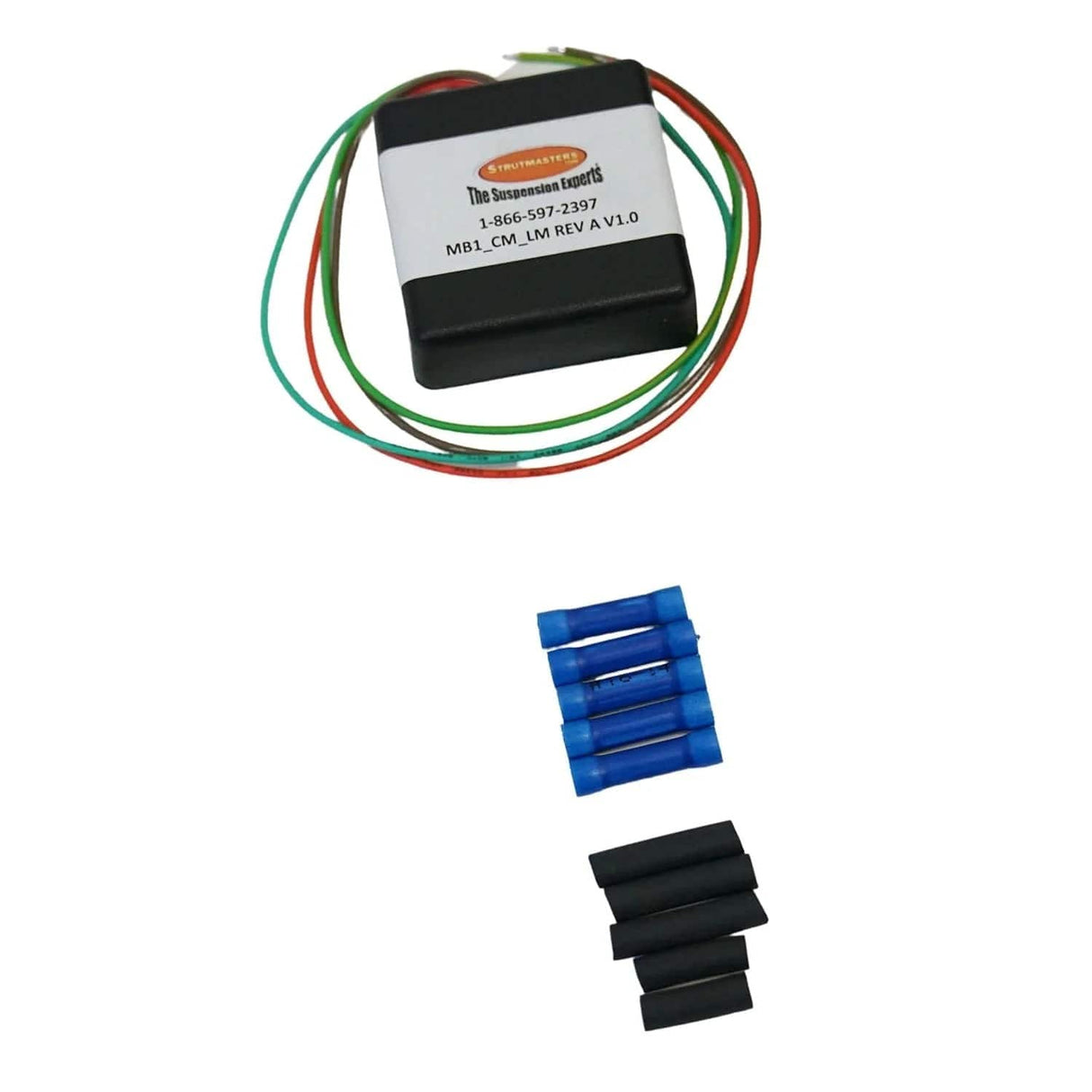

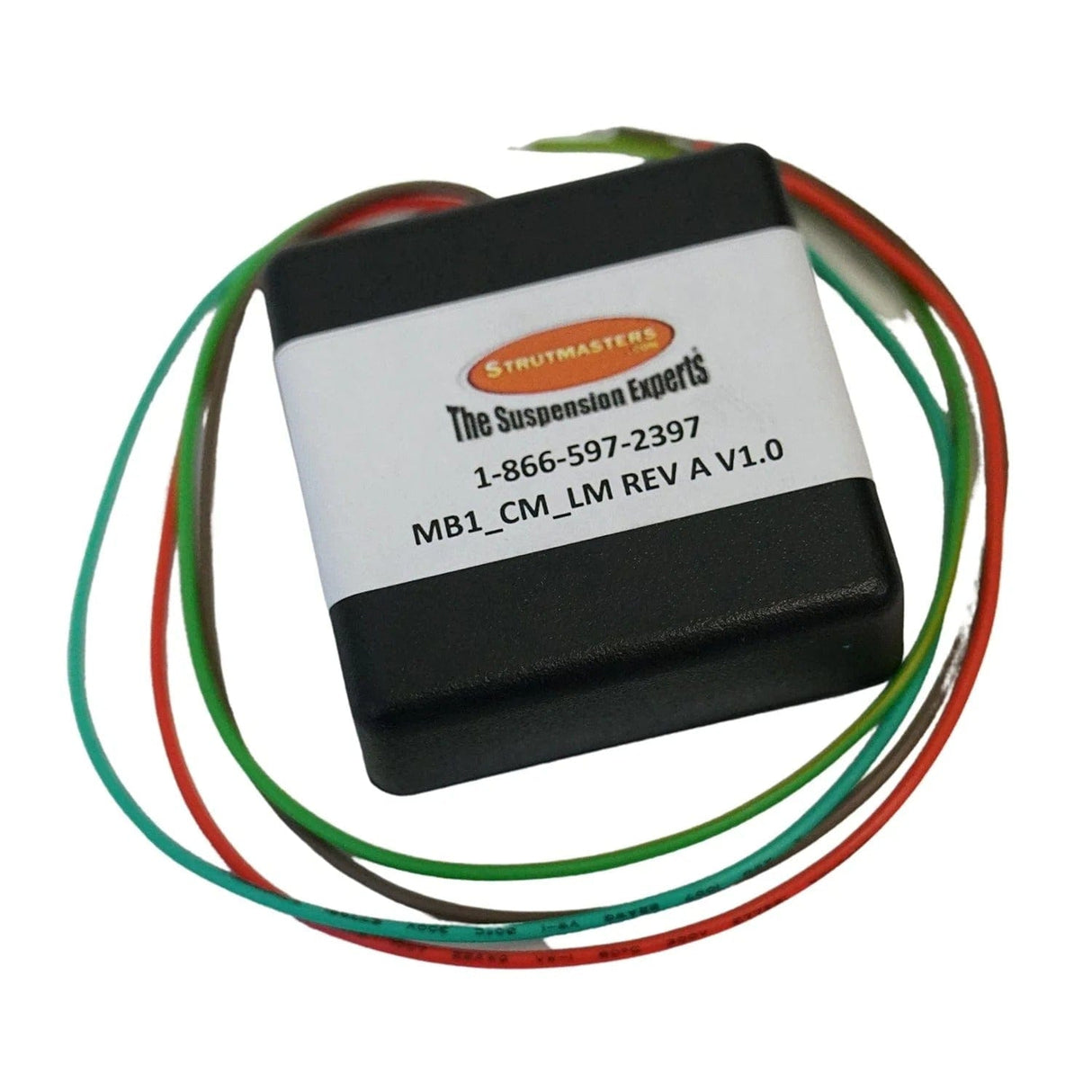

• Suspension Warning Light Delete Module

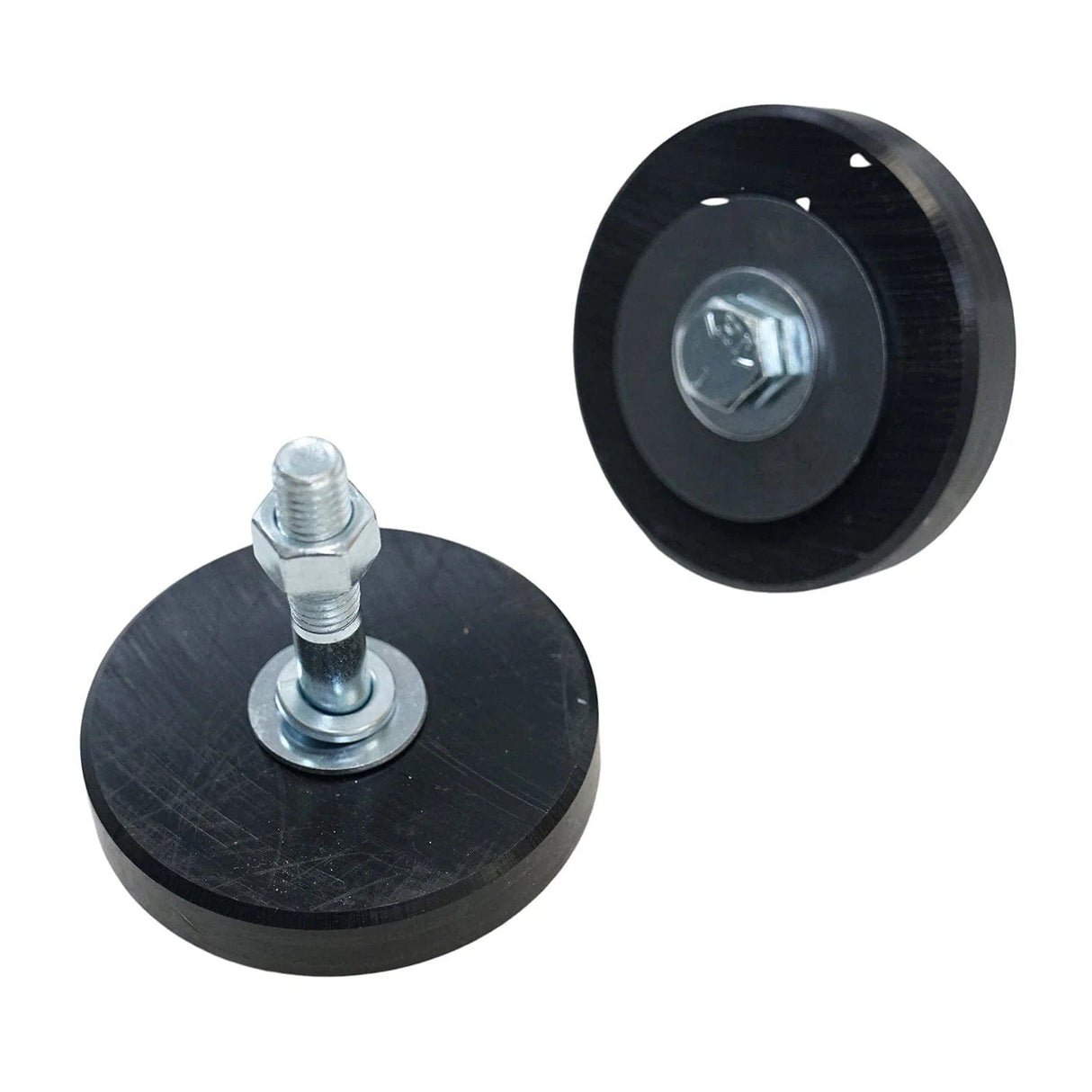

• New Mounts and Necessary Hardware
• Step-By-Step Detailed Installation Instructions

THIS CONVERSION KIT FITS

• 2007 Mercedes-Benz GL450 4MATIC
• 2008 Mercedes-Benz GL450 4MATIC
• 2009 Mercedes-Benz GL450 4MATIC
• 2010 Mercedes-Benz GL450 4MATIC
• 2011 Mercedes-Benz GL450 4MATIC
• 2012 Mercedes-Benz GL450 4MATIC

Product Notes:

• INCLUDES the suspension warning light elimination module (recommended on vehicles with active suspension on all four wheels)
• This kit fits models with and without Active Dampening Suspension!

Replaced Components

The 2007-2012 Mercedes-Benz GL450 4MATIC is built with the following suspension components:

2007-2012 Mercedes-Benz GL450 4MATIC Air Struts (models with Active Dampening Suspension) (x2) - shocks whose dampening capabilities are controlled by the suspension control module.

2007-2012 Mercedes-Benz GL450 4MATIC Coilover Struts (models without Active Dampening Suspension) (x2) - A type of shock absorber, it is a piece of metal tubing filled with gas-charged hydraulic fluid that is connected to the wheel of a vehicle in order to reduce the effects of vertical travel on a rough surface which controls the bounciness, and therefore comfort, of a vehicle. Coil springs fit around the top portion of the struts and hold the vehicle up, they are rated for and designed to work with the rest of the suspension system.

2007-2012 Mercedes-Benz GL450 4MATIC Shock Absorbers (x2) - a metal tubing filled with gas-charged hydraulic fluid that is connected to the wheel of a vehicle in order to reduce the effects of vertical travel on a rough surface which controls the bounciness, and therefore comfort, of a vehicle. 2

007-2012 Mercedes-Benz GL450 4MATIC Air Springs (x2) - commonly referred to as air bags, a plastic and rubber bag that is fitted on top of the strut that uses pressurized air as a cushion instead of a metal coil spring to hold a vehicle off of the ground and off of its wheels. These are the number one cause of all air suspension leaks. All air springs all go bad at about the same rate. If one is leaking, the others will not be far behind. For a proper repair, all of them need to be replaced at the same time.

2007-2012 Mercedes-Benz GL450 4MATIC Height Sensors (x4) - a linkage located near each wheel of a vehicle with any electronic suspension that, either mechanically or electronically, constantly measures the height of the vehicle, and reports this information back to the control module so that the computer can identify if changes in height need to be adjusted accordingly. The ride height sensor is a moving part, and like all moving parts, they will eventually wear out.

2007-2012 Mercedes-Benz GL450 4MATIC Air Lines - tubes that run from a compressor to the air springs, which carry pressurized air to the air bags.

2007-2012 Mercedes-Benz GL450 4MATIC Solenoids (models with Active Dampening Suspension) (x4) - usually L-shaped, these plastic components connect the electrical connection and lines of suspension components to the suspension control module on vehicles with active suspension. The solenoid regulates the air pressure for each air spring. Solenoids start to leak as they wear out causing the vehicle to sag or to lean. This will cause the ride height sensor to send a signal to activate the compressor in an attempt to inflate the air suspension and level out the vehicle. This excessive work load will eventually lead to total failure of the compressor.

2007-2012 Mercedes-Benz GL450 4MATIC Compressor Assembly - creates/sends pressurized air to active suspension components. When the air suspension starts leaking, the compressor/pump starts working harder to try to keep the system inflated. By the time air suspension leaks down completely, sitting the vehicle on its tires, the compressor will either have failed or be well on its way to full failure. Buying replacement struts and taking the time to install them only to find out the compressor still needs to be replaced can be very frustrating, time-consuming, and expensive.

2007-2012 Mercedes-Benz GL450 4MATIC Suspension Control Module - a computer which is responsible for the operations of the air suspension system and maintaining the vehicles correct ride height.

2007-2012 Mercedes-Benz GL450 4MATIC O-rings - although they are the least expensive parts of the air suspension, they are responsible for maintaining the seal where all of the air lines connect. Be sure to replace the O-rings when repairing any air suspension system.

Suspension Failure Signs

If the 2007-2012 Mercedes-Benz GL450 is unable to meet and maintain its proper ride height, the air suspension system may be leaking or going bad. Look for the following signs that indicate a failed suspension before it's too late and total failure sets in. The most noticeable sign is a sudden height variance between different sides of the GL450. Look for a sagging rear end, an inflated front end, a shifting lean from one side to the other, or an overall, squatting appearance. These imbalances will wear out the air compressor if they aren't fixed promptly. If the air compressor has already ceased working, a suspension warning light will illuminate on the interior instrument cluster. To avoid this worst-case scenario, repair any suspension issue as soon as it presents itself.

OEM Replacement Cost

• Front Air Struts (w/Active Dampening System) ($1,080/strut)
• Rear Air Strut (w/ADS) ($556/strut)
• Air Compressor Assembly ($420)
• Pressure Accumulator (w/ADS) ($300)
• = TOTAL: Over $3,900 (and that doesn't even include replacing electronic components that are known to fail such as the height sensors).

• Front Air Struts (w/Active Dampening System) ($650/strut)
• Rear Air Strut ($680/strut)
• Air Compressor Assembly ($490)
• Pressure Accumulator ($230)
• = TOTAL: Over $3,300 (and that doesn't even include replacing electronic components that are known to fail such as the height sensors).
