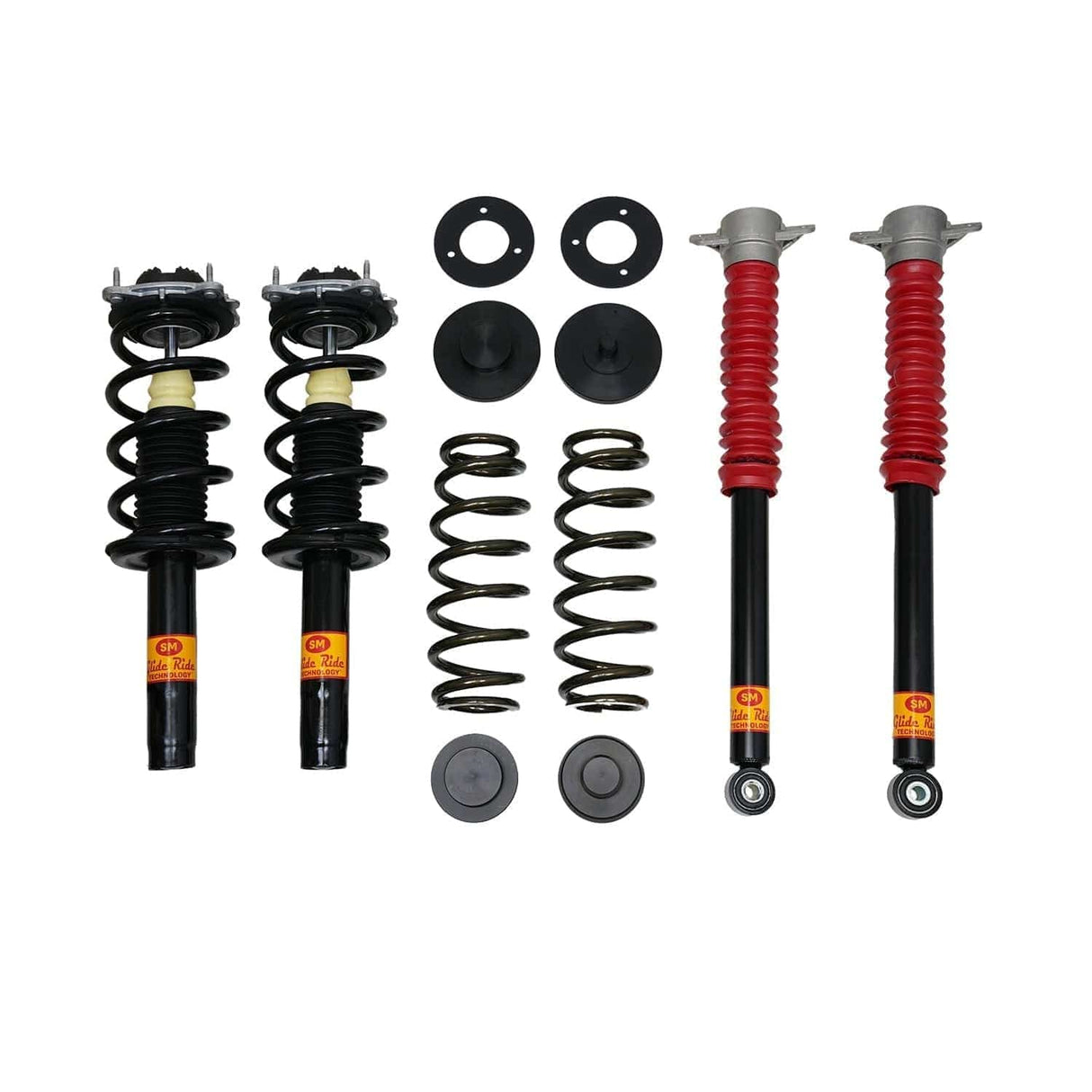

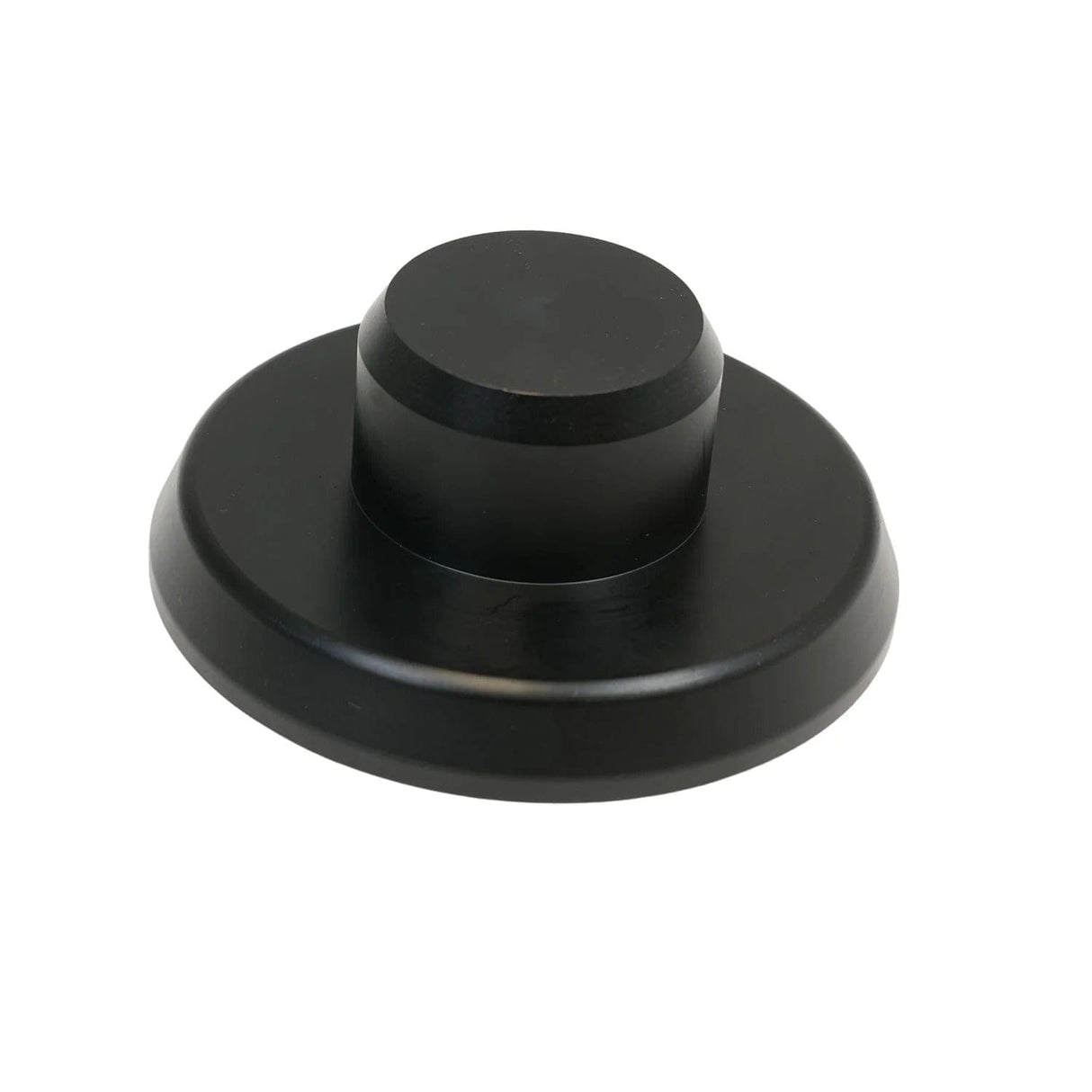

2013-2018 Audi S6 AWD 4-Wheel Air Suspension Conversion/Delete Kit (AB24F)

Replaced Components

The 2013-2018 Audi S6 AWD is built with the following suspension components:

2013-2018 Audi S6 AWD Air Struts (x4)- Metal tubes filled with a gas-charged hydraulic fluid that controls bouncing motions and dampens vibration caused by travel on rough road surfaces. On this vehicle, the struts are the mounting place for an air spring that fills with compressed air and helps support the weight of the vehicle. These air springs, which take the place of a traditional steel coil spring, are managed by the suspension control module. The air springs are made of plastic and rubber and eventually develop cracks in the rubber and leak air from the system. The entire air strut unit can cost as much as $1458 each for Original Equipment units at the Audi dealer.

2013-2018 Audi S6 AWD Air Lines- Tubes that carry pressurized air from the air compressor to the rubber air springs.

2013-2018 Audi S6 AWD Solenoids (x4)- Plastic and metal components that regulate the air pressure for each air spring. Solenoids start to leak as they wear out, causing the compressor to run excessively. Leaking solenoids contribute to the failure of the compressor.

2013-2018 Audi S6 AWD Air Compressor - Creates and sends pressurized air to each of the vehicle's four air struts. When the air suspension starts leaking, the compressor (also known as an air pump) starts working harder to try to keep the system inflated. By the time the air suspension leaks down completely, the compressor has completely failed or will no longer make enough air to keep the system inflated. An Original Equipment compressor can cost as much as $1430 at the Audi dealer. It is recommended to at the very least replace all four air struts at the same time as replacing the compressor.

2013-2018 Audi S6 AWD Dryer Assembly - Used to keep moisture out of air lines and air springs in order to prevent freezing and internal cracking of these parts. Once air suspension starts leaking, moisture will build up throughout the air system. Moisture damages the air suspension from the inside. The dryer will need to be replaced in order to eliminate the moisture and prevent any further damage.

2013-2018 Audi S6 AWD Suspension Control Module - A computer responsible for the operations of the air suspension system and maintaining the vehicle's correct ride height. Replacement of this module at the dealer can cost as much as $975.

2013-2018 Audi S6 AWD Rubber O-rings - Although they are the least expensive parts of the air suspension, they are responsible for maintaining the seal where all of the air lines connect. Be sure to replace the O-rings when repairing any air suspension system.

Suspension Failure Signs

A sudden loss of three to five inches of ride height means the air suspension on your 2013-2018 Audi S6 AWD is in trouble. The entire vehicle may be sitting low, or it can drop in the front, rear, or either side. This loss of ride height normally occurs when the vehicle's onboard air compressor can no longer make enough air to keep the system fully pumped up.

The number one cause of leaks in the system are tiny cracks in the rubber air spring portion of the vehicle's air struts located at each wheel. Wear from millions of up and down motions and dry rot due to aging cause the cracks to appear in the rubber. Air starts to leak slowly at first, then as the leaks grow worse, the onboard air compressor works more and more until it eventually gets overheated and quits. Although some compressors may fire back up after time to cool off, they won't be able to make enough air pressure to do the job. An Original Equipment air compressor can cost as much as $1430 at the dealer, and the air struts needed at each wheel of the vehicle can cost over $1300 each! Replacing all of these components to the tune of $5000 still leaves the suspension control module ($975) and ride height sensors ($240 times four) to worry about. When the system starts to malfunction, it is normal for an illuminated suspension warning light or message to appear in the instrument cluster. An extremely noisy air compressor or one that runs constantly can be earlier signs of trouble with the system.

Experienced technicians say that a complete overhaul of the system by replacing each of the major components mentioned earlier is the only way to ensure a successful repair. Since spending $5000 or more on an older, higher mileage vehicle doesn't make sense for many Audi owners, Strutmasters invented the suspension conversion kit as an alternative to solve the problem for a fraction of the OE cost.

OEM Replacement Cost

• Rear Air Struts ($1318/strut) +
• Front Air Struts ($1458/strut)

= TOTAL: Over $5,552 (and that doesn't even include replacing electronic components that are known to fail such as the height sensors).
